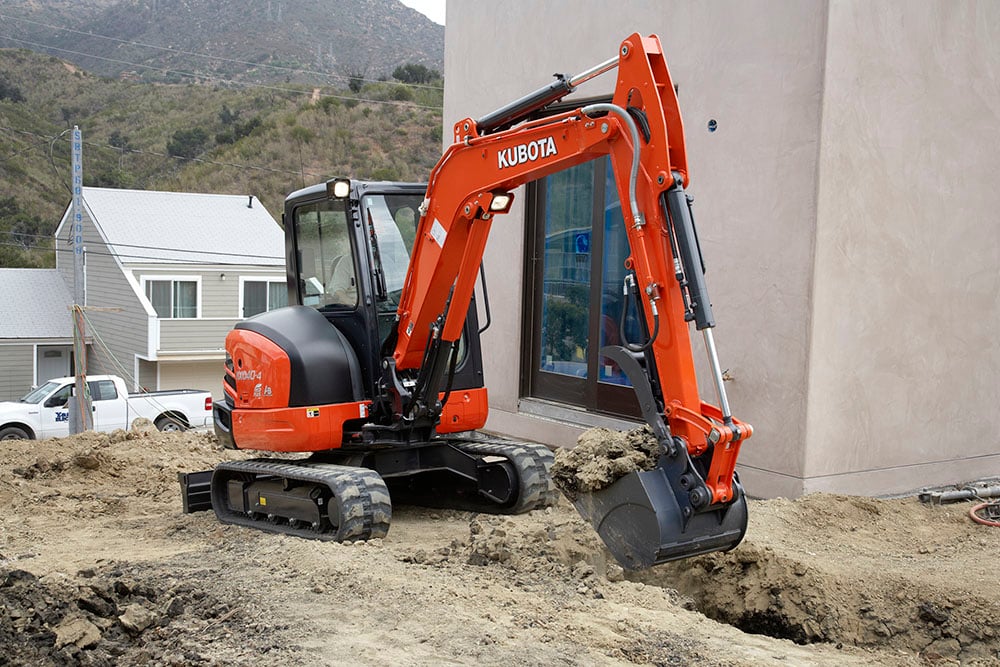

KX040-4 6 in 1 Blade

MSRP AS LOW AS: $72,793.00 USD

Images may reflect a higher MSRP. Fill out the form below for our best price!
Engine
Model: Kubota KX040-4 6 IN 1 BLADE
Horsepower (gross): 40.4
Displacement (cu. in.) 111.4
Dimensions
Overall Length, ft (mm):  16'8.2" (5085)
Overall Height, ft (mm): 8'1.8" (2485) / 8'1.8" (2485)
Overall Width, ft (mm): 5'10.9" (1800)
Hydraulics
Pump Capacity (GPM): 24.4 (92.4)
Auxiliary Hydraulic Flow (GPM): 17.2 (65) / 9.8 (37)
Max. Breakout Force (lbs): 9535 (4325) / 4112 (1865)
Drive System
Travel Speed (low/high) 1.8 (2.9) / 3.1 (5.0)
Tumbler Distance ft. in. (mm) 5'7.3" (1710)
Crawler Length ft. in. (mm): 7'1.6" (2175)

Find a part

Request trade-in

Digging isn’t easy, but the Kubota KX040-4 6-in-1 Blade will make it feel like it is. With 40.4 horsepower and a 5’ 10.9”-wide blade, the Kubota KX040-4 6-in-1 Blade is perfect for getting the job done. Kubota's hydraulic 6-in-1 Blade can be angled right and left, and now, tilted as well. This blade enables six different positions: neutral, floatup, left-end-up, right-end-up, leftend-forward and right-end-forward. This feature makes leveling and backfilling work incredibly easy, even on inclines and uneven terrain, making you more productive and more efficient. Kubota is the world’s #1 selling compact excavator for 20 years.*

*According to 2023 data from Off-Highway Research including all Kubota Group brand sales.

Download Specifications
Clean Running Kubota Tier 4 Engine Two Speed Travel Serviceability

Kubota excavators are all powered by Kubota Tier 4 emission engines. The modern engine design maximizes digging and lifting performance, delivers minimized noise and vibration and meets the latest engine emission regulation.
